LED Garden Light VTGDL2558

  • Energy Efficiency: Up to 120 LM/W luminous efficacy with premium 3030/5050 LED sources, delivering high lumen output
  • Durability and Protection: IP65-rated for water and dust resistance, IK08 impact rating for vandal-proof design, and built-in surge protection against overvoltage and overheating.
  • Easy Installation: Versatile mounting for Ø60–76 mm pole arms
  • Smart Features: Photocell compatibility for advanced smart control systems, plus optional 10kV or 20kV surge protection for enhanced safety.

Additional information

Certification

CE ROHS

Color

Gray, Black, White, Customized

Voltage

120-277V/347-480V

Part Number

VTGDL2558

Product Details

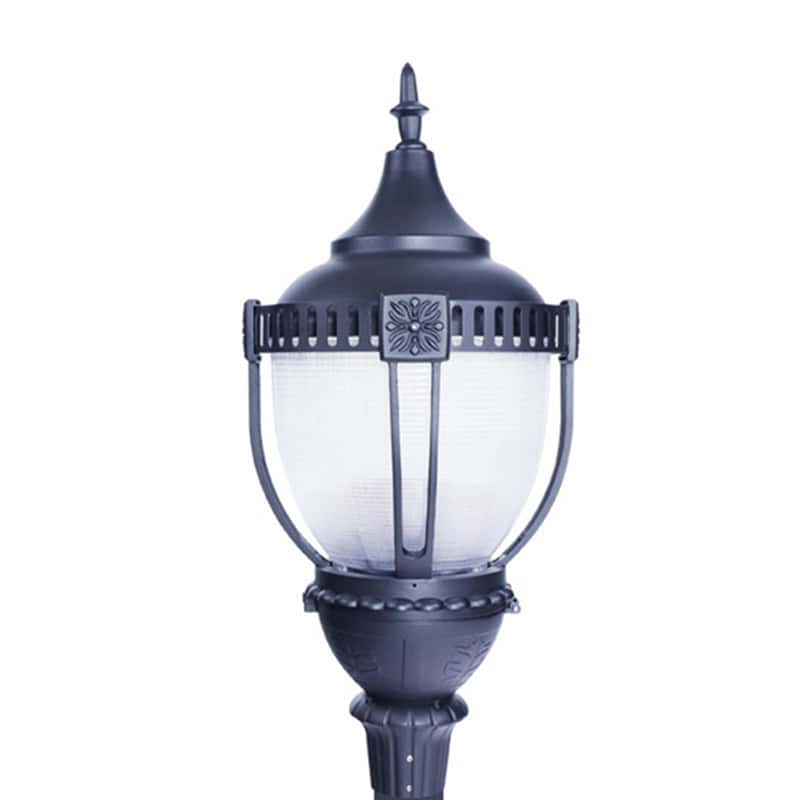

Illuminate Your Spaces with Volttalent  LED Acorn Lights: Traditional Design Meets Modern LED Efficiency

In an era focused on energy conservation and aesthetic appeal, the Volttalent  Acorn Style Post Top Luminaires offer the perfect blend of classic architecture and cutting-edge LED technology. Ideal for municipal, institutional, commercial, and residential applications, these LED acorn lights provide zero-maintenance illumination while preserving traditional designs. Whether you’re upgrading parks, streets, or campuses, this series delivers reliable outdoor post top lighting that’s efficient, dimmable, and built to last in diverse climates.

Why Choose Volttalent  LED Acorn Lights?

This LED Acorn Light is designed for versatility, featuring selectable power options and advanced controls to suit large-scale projects or smaller installations. These energy-efficient LED post top luminaires combine timeless acorn styling with modern features, ensuring seamless integration into any environment. Key highlights include:

  • Selectable Power and Efficacy: Available in 40W, 60W, 80W,100W and 120W configurations with an average efficacy of 120 lm/W, optimizing energy use without sacrificing brightness.
  • Customizable Color Temperatures: Choose from 3000K (warm), 4000K (neutral), or 5000K (cool) to match your ambiance needs, with a CRI >70 for accurate color rendering.
  • Advanced Dimming and Controls: Standard 0-10VDC dimming for standalone or integrated operation, plus optional dusk-to-dawn photocell for automated efficiency.

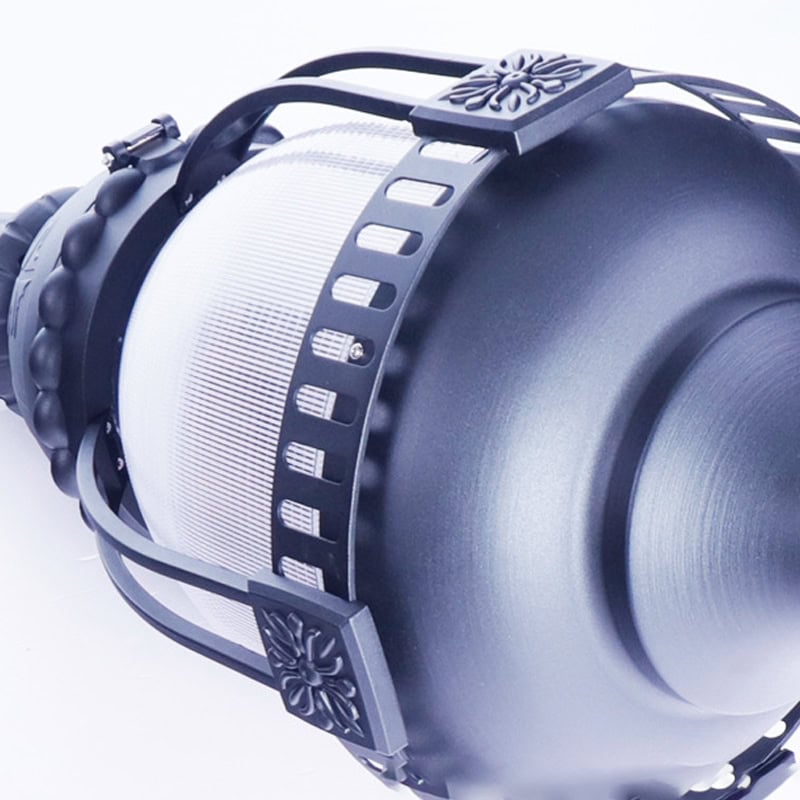

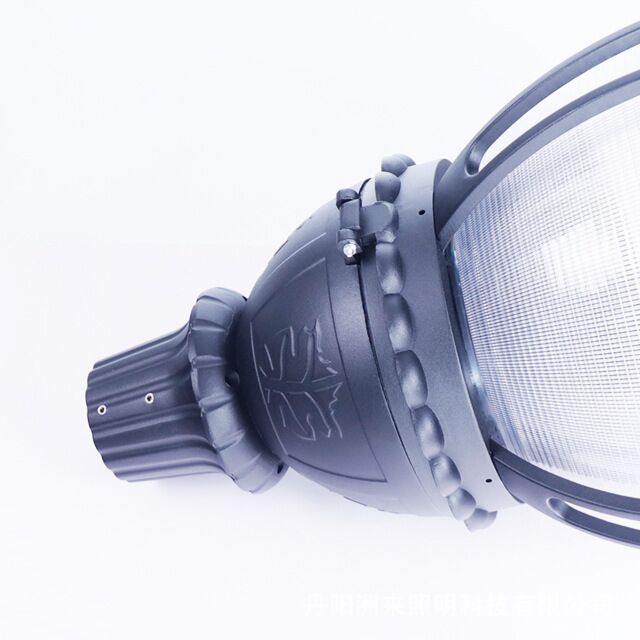

  • Durable Construction: PC housing with a cast aluminum base, wet location listed for all-weather performance from -40°F to +130°F.
  • Surge Protection: Optional 10kV protection to safeguard against electrical spikes.
  • Long Lifespan: Rated L70 ≥150,000 hours, L80 ≥120,000 hours, and L90 ≥61,000 hours for minimal replacements.
  • 5-Year Limited Warranty: Ensures quality and reliability for peace of mind.

This series supports future-proofing with easy addition of control modules, making it a smart choice for sustainable outdoor LED lighting.

Technical Specifications

Explore the detailed specs of our LED garden light models to find the perfect fit for your project:

Model VTGDL2558-A VTGDL2558-B VTGDL2558-C VTGDL2558-D VTGDL2558-E
Wattage 40W 60W 80W 100W 120W

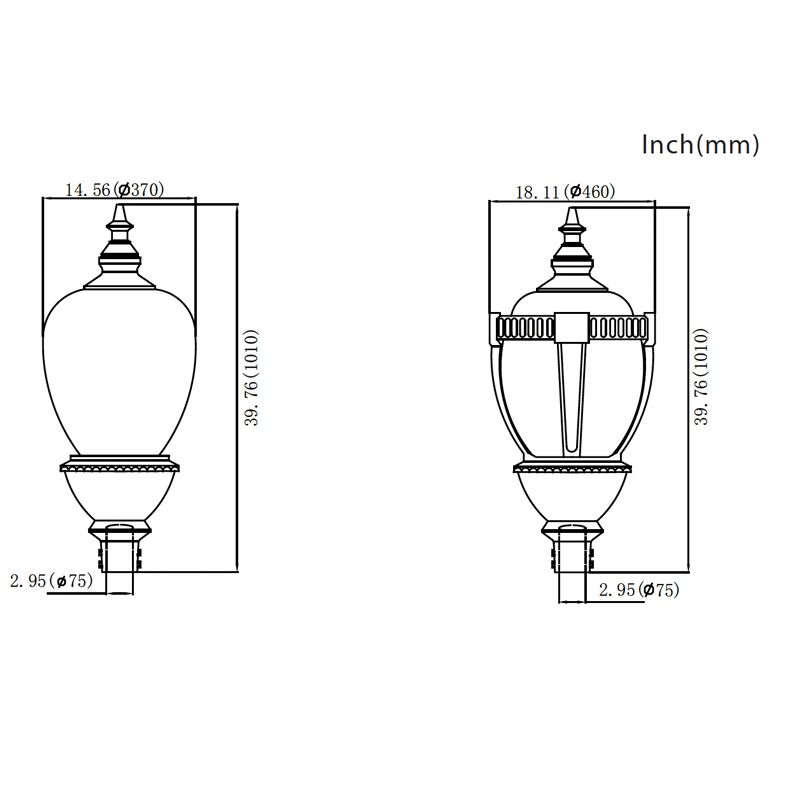

Dimension L*W*H(mm) 370*370*1010MM 370*370*1010MM 370*370*1010MM 370*370*1010MM 370*370*1010MM
Luminous flux 120LPW 120LPW 120LPW 120LPW 120LPW
LED Chips 3030/5050 3030/5050 3030/5050 3030/5050 3030/5050
LED Driver Inventronics or Custom Inventronics or Custom Inventronics or Custom Inventronics or Custom Inventronics or Custom
Material  Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Install pole diameter 76mm  76mm  76mm  76mm  76mm
Beam angle Type I II III IV V Type I II III IV V Type I II III IV V Type I II III IV V Type I II III IV V
Power factor >0.98 >0.98 >0.98 >0.98 >0.98
CRI >70 >70 >70 >70 >70
Lifetime > 50 000 hours > 50 000 hours > 50 000 hours > 50 000 hours > 50 000 hours
Warranty  5 Years  5 Years  5 Years  5 Years  5 Years

These specs emphasize the series’ focus on high-performance LED acorn lighting, with robust protection and flexibility for various post top luminaire applications.

Design and Durability: Timeless Elegance with Robust Engineering

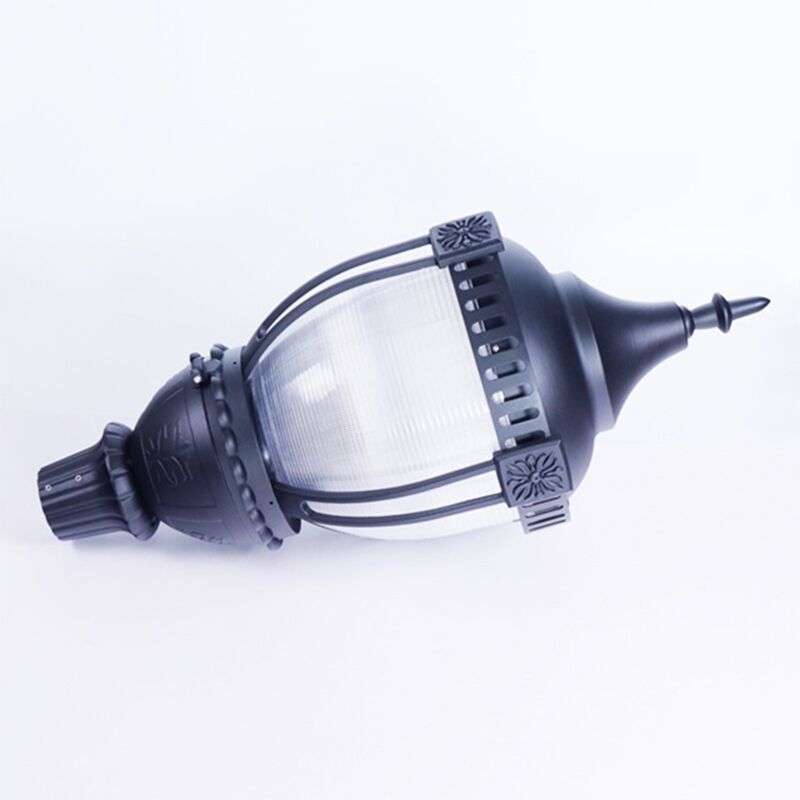

Inspired by traditional acorn designs, the VTGDL2558 series features elegant housing styles that enhance architectural appeal while incorporating modern LED efficiency. The compact dimensions ensure easy installation on poles, with a focus on low EPA ratings for wind resistance. Built for extreme conditions, these luminaires offer superior ingress protection and surge safeguards, reducing downtime and maintenance costs.

With continuous dimming as standard, they adapt to changing needs, from bright daytime security to subtle evening ambiance. This makes them perfect for durable LED outdoor lights in harsh environments, ensuring long-term value and energy savings.

Applications and Benefits

The VTGDL2558 series series excels in municipal LED lighting, institutional campuses, commercial plazas, and residential neighborhoods. Benefits include:

  • Energy Efficiency: 120 lm/W efficacy lowers utility bills and supports green initiatives.
  • Versatile Controls: Photocell options automate operation for hands-free convenience.
  • Low Maintenance: Extended lifespan minimizes replacements, ideal for large-scale deployments.
  • Aesthetic Flexibility: Multiple styles preserve historical charm in modern settings.
  • All-Climate Reliability: Performs in extreme temperatures, ensuring year-round functionality.

Upgrade to these acorn style LED post tops for enhanced safety, beauty, and sustainability in your outdoor spaces.
