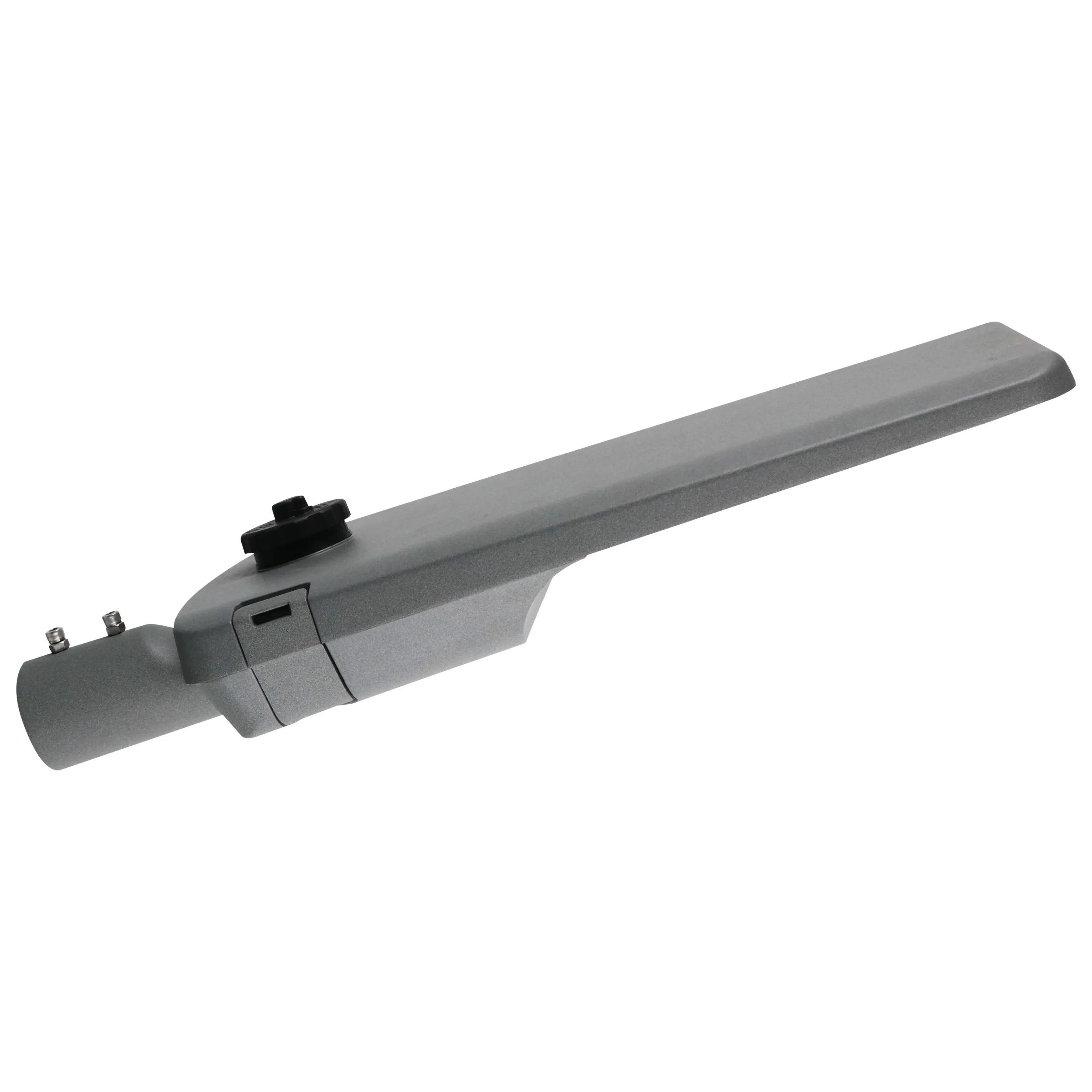

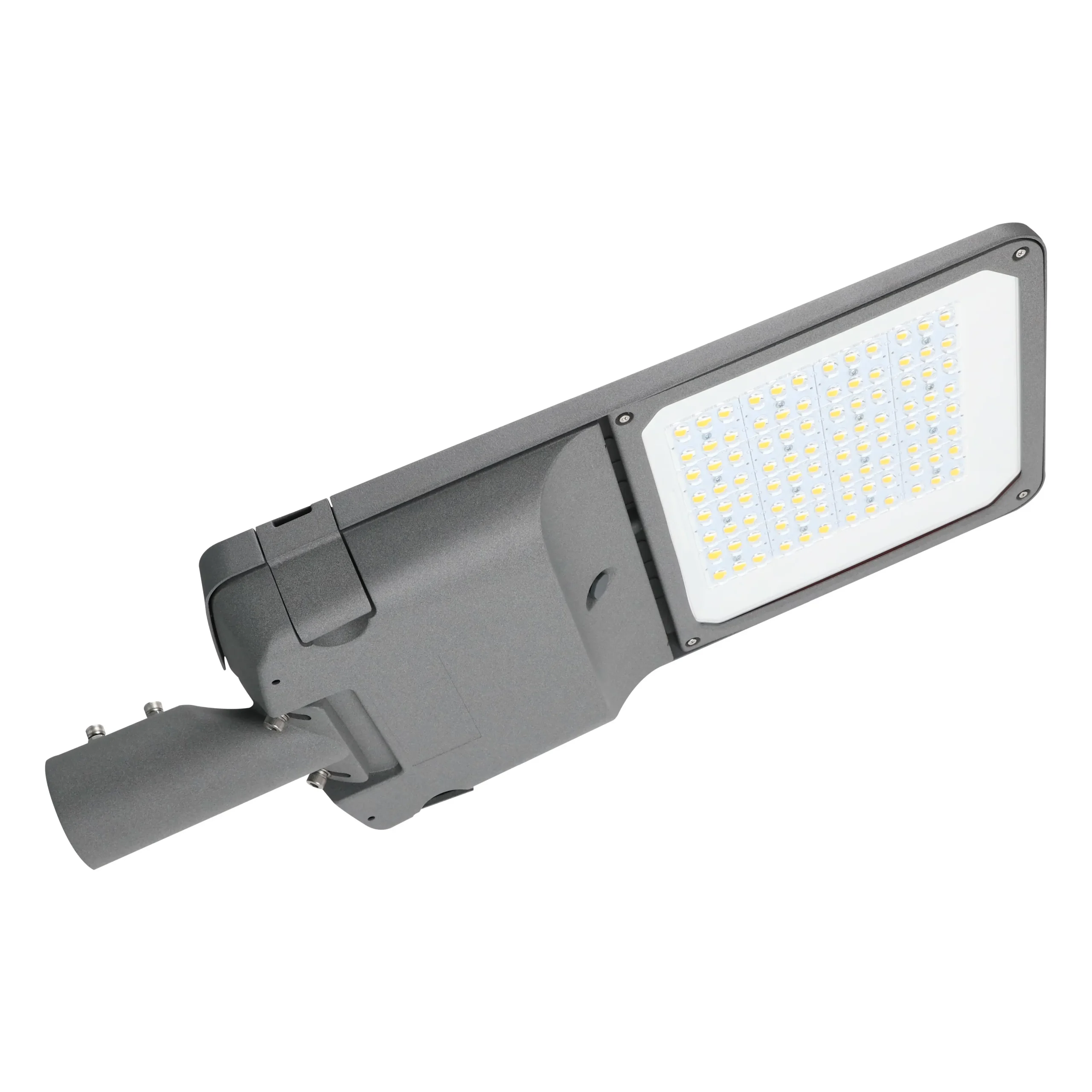

LED Street Light VTSTL2539

  • Power range 30W-240W
  • Free-tool maintenance
  • High performance with Lumileds chips
  • Lumen performance up to 160 lm/W+
  • Build-in 10KV surge protection device
  • Five light distributions
  • Available on request: NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Daylight sensor, Motion sensor, IoT, Solar Compatible, DALI Dimming
  • Customized Configurations as per client project.

其他信息

Certification

CE ROHS ETL

Color

Gray, Black, White, Customized

Part Number

Acquila VTSTL2539

Voltage

90-305V/277-480V/ Solar Compatible

Product Details

The Aquila Series LED Street Light is a high-performance lighting solution designed for roads, squares, scenic spots, and outdoor areas, combining innovative engineering with robust durability. Equipped with premium-quality chips and minimal light decay, it ensures long-lasting brightness and efficiency. The adjustable sleeve design allows flexible customization of lighting angles, while the bat-wing lens and multiple optical configurations deliver uniform illumination with optimal coverage. With a wide color temperature range (2200–6500K), it adapts seamlessly to diverse environments, from warm ambient lighting to crisp daylight scenarios.

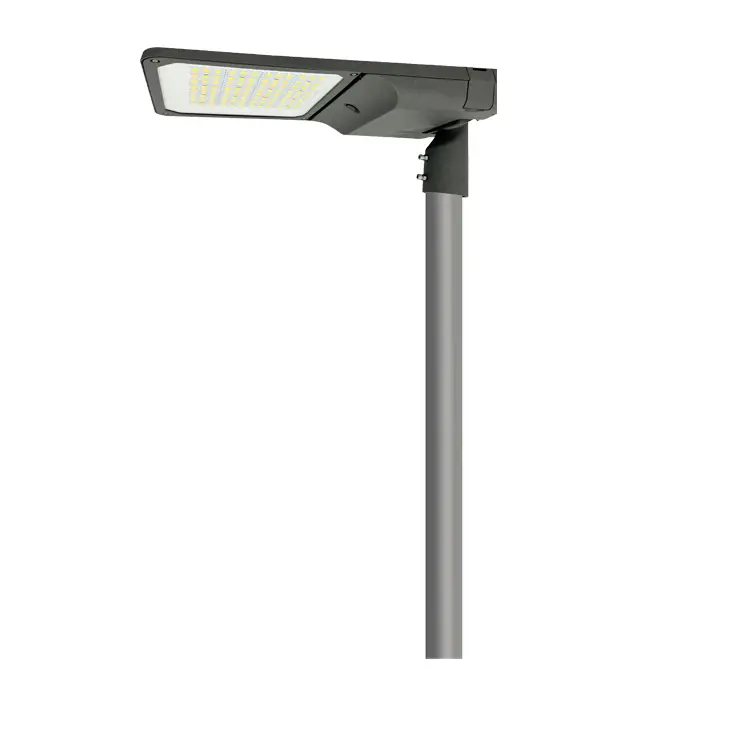

Built to endure harsh conditions, its corrosion-resistant die-cast aluminum housing and IP66 rating provide superior protection against dust, moisture, and extreme temperatures (-30°C to +50°C). Advanced heat dissipation technology extends LED lifespan to over 50,000 hours, while a power factor of >0.95 and efficiency of 130–160 lm/W ensure energy savings. The series supports versatile installation (horizontal, vertical, or tilted up/down 15°) and accommodates poles up to 60mm in diameter, ideal for heights of 6–12m. Backed by a reliable warranty, the Aquila Series is engineered for low-maintenance operation and long-term value.

Model VTSTL2539A VTSTL2539B VTSTL2539C VTSTL2539D VTSTL2539E
Wattage 30/40W 50/60W 80/100/120W 150/200W 200/240W
Dimension L*W*H(mm) 576.5*209*89mm 593*263*89mm 644*263*89mm 708*215*89mm 810*315*89mm
Luminous flux 130/160LPW 130/160LPW 130/160LPW 130/160LPW 130/160LPW
LED Chips 3030/5050 3030/5050 3030/5050 3030/5050 3030/5050
LED Driver Meanwell/ Inventronics Meanwell/ Inventronics Meanwell/ Inventronics Meanwell/ Inventronics Meanwell/ Inventronics
Material ADC 12 Aluminum ADC 12 Aluminum ADC 12 Aluminum ADC 12 Aluminum ADC 12 Aluminum
Install pole diameter 60mm 60mm 60mm 60mm 60mm
Beam angle Type I II III IV V Type I II III IV V Type I II III IV V Type I II III IV V Type I II III IV V
Power factor >0.98 >0.98 >0.98 >0.98 >0.98
CRI >70 >70 >70 >70 >70
Lifetime > 50 000 hours > 50 000 hours > 50 000 hours > 50 000 hours > 50 000 hours
Warranty  5 Years  5 Years  5 Years  5 Years  5 Years
